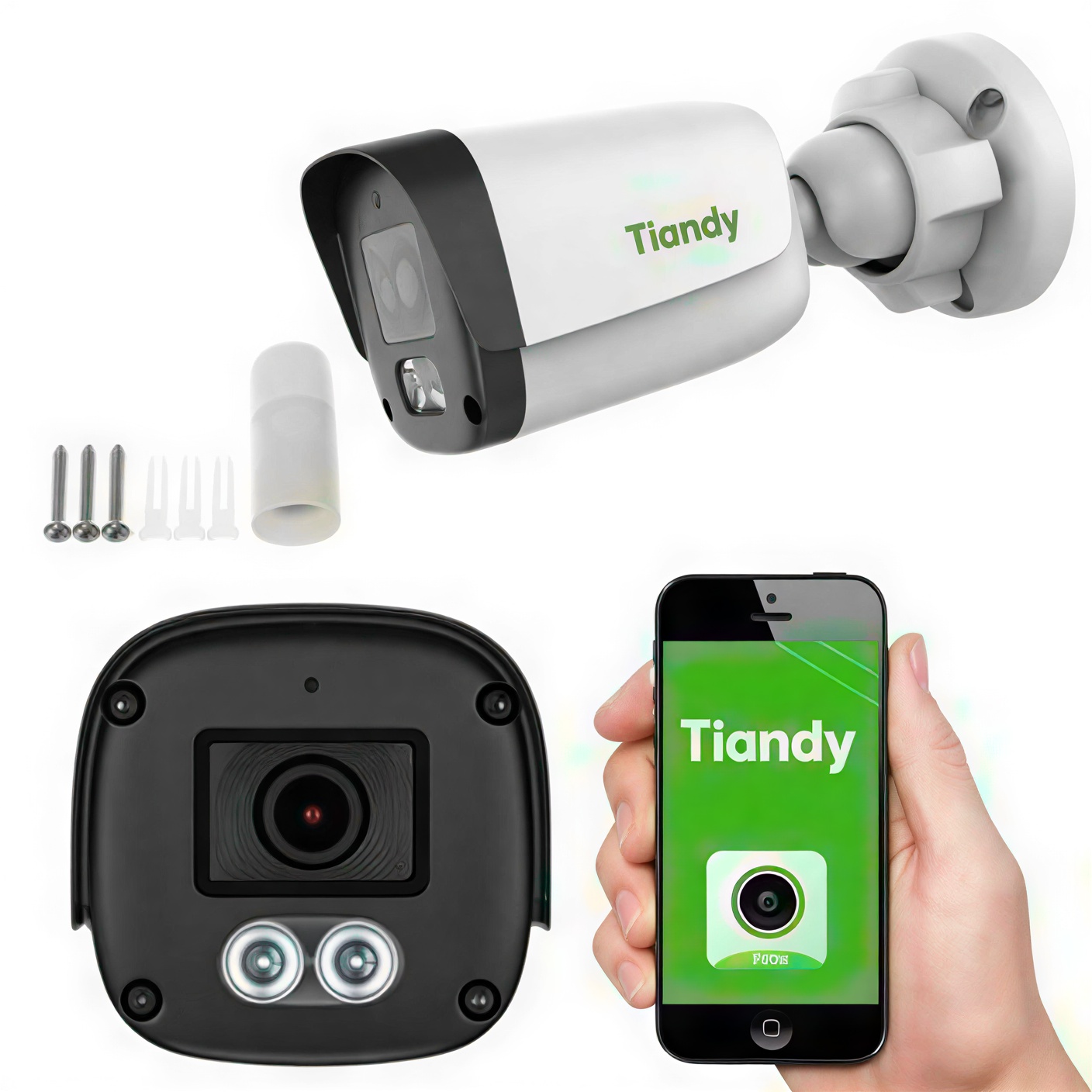

CAMERA IP BULLET AK TANK TC-C321N:AK/I3/E/Y/C/4MM/V2.0

Description

PRODUCT DETAILS OF CAMERA IP BULLET AK TANK TC-C321N:AK/I3/E/Y/C/4MM/V2.0 TIANDY Product Type: IP Bullet Camera Model: TC-C321N Brand: Tiandy Resolution: 3MP (Varies by model) Lens: 4mm fixed lens Connectivity: Wired Ethernet connection Night Vision: Built-in IR LEDs for up to 30m visibility Audio: No two-way audio Mounting: Wall or ceiling mount options Compression: H.264/H.265 video compression Weatherproof: IP66 rating, suitable for outdoor use Power Supply: POE (Power over Ethernet) Storage: Supports SD card for local storage

Key Features

• ·Plastic housing
• ·Up to 2MP,1920×1080@30fps
• ·S+265/H.265/H.264B/H.264M/H.264H
• ·Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR
• ·IR range up to 30m
• ·Built-in Mic ·Operating conditions -30℃~60℃(-22℉~140℉), ≤95%RH
• ·PoE:IEEE 802.3af,Max. 3W ·IP67

Specifications

Camera Image Sensor 1/3″CMOS Min. Illumination Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR Shutter Time 1s~1/100000s Day&Night IR-cut filter with auto switch (ICR) Smart IR Yes WDR DWDR S/N >47.8dB Angle Adjustment 0~360°(P); 0~80°(T); 0~360°(R) Lens Lens Type Fixed focal lens Focal Length 4mm Lens Mount M12 Aperture Range F2.0 Aperture Type Fixed Field of View 78.3°(H); 44.1°(V); 89.3°(D) DORI Distance Detect:59.26m Observe:23.52m Recognize:11.85m Identify:5.93m Illuminator IR LEDs 2 IR Distance Up to 30m Wavelength 850nm Compression Standard Video Compression S+265/H.265/H.264B/H.264M/H.264H Video Bit Rate 32k~4Mbps Audio Compression G.711A/G.711U Audio Sampling Rate 8kHz Image Max. Resolution 2MP,1920×1080@30fps Main Stream PAL:25fps(1920×1080, 1280×720, 704×576, 640×480) NTSC:30fps(1920×1080, 1280×720, 704×480, 640×480) Sub Stream PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) BLC Yes HLC Yes AGC Yes 3D DNR Yes White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance OSD Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48 Privacy Mask 4 black static areas Defog Yes Feature General Alarm Motion Detection Exceptions Alarm IP Address Conflict Linkage Method Alarm Output Network Protocols HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; Telnet; Unicast System Compatibility SDK; CGI Remote Connection ≤2 Client Easy7 VMS Interface Communication Interface 1*RJ-45 (10/100 Base-T) Built-in Mic Yes General Operating Temperature -30℃~60℃(-22℉~140℉) Operating Humidity ≤95%RH Storage Temperature -30℃~60℃(-22℉~140℉) Storage Humidity 10%~95%RH(non-condensing) Power Supply PoE:IEEE 802.3af,Max. 3W Protection Surge4000V; ESD6000V; IP67 Boundary Dimensions 140(L)60(W)60(H)mm Package Dimensions 155(L)75(W)85(H)mm GrossWeight 0.2kg
