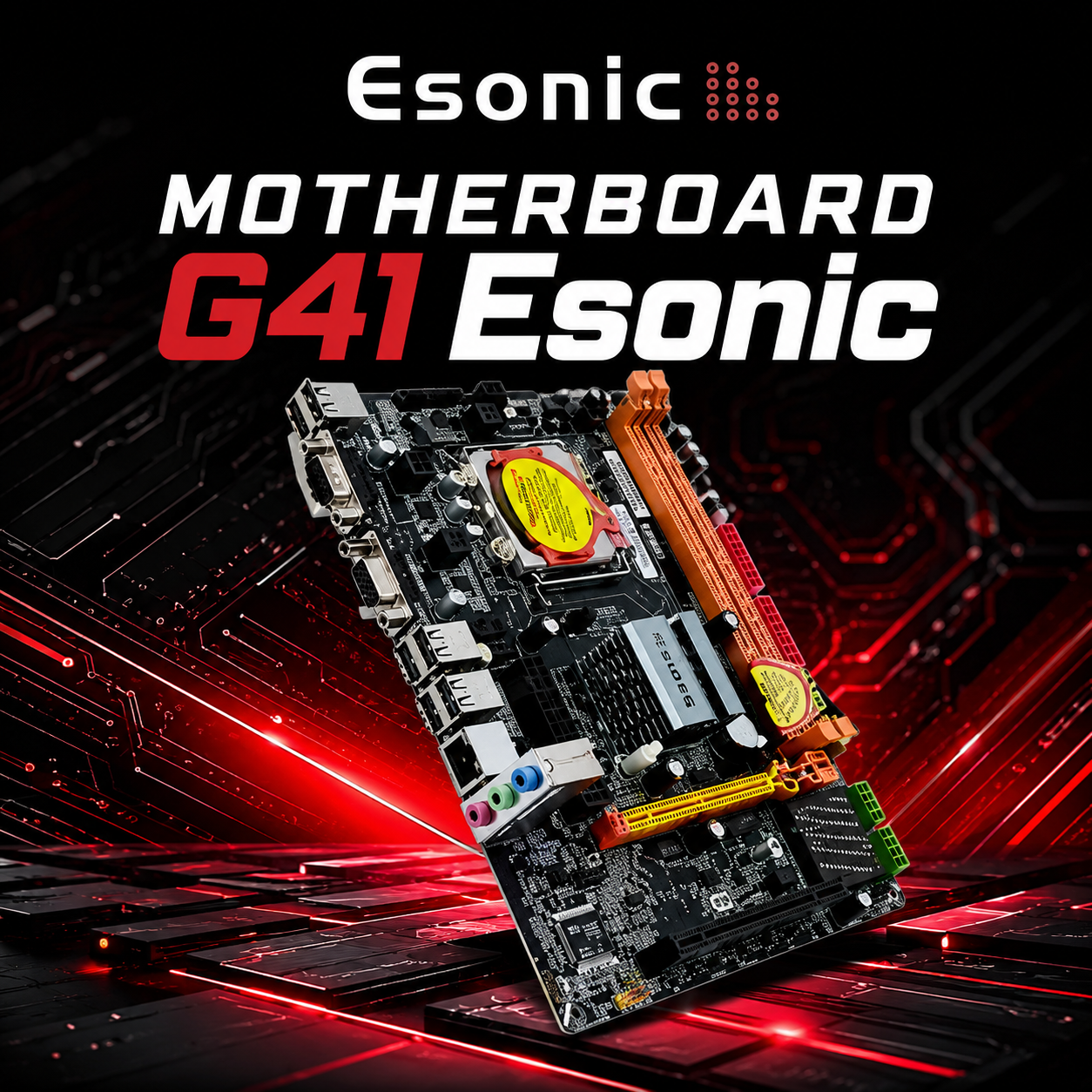

Motherboard G41 Esonic

Description

Product details of Motherboard G41 Esonic Model: Esonic G41 Chipset: Intel G41 Socket Type: LGA 775, compatible with Intel Core 2 Duo, Core 2 Quad, Pentium, and Celeron processors. Form Factor: Micro ATX Memory Support: 2 x DDR2 DIMM slots, up to 8GB, 800/1066 MHz Storage: 4 x SATA II 3Gb/s ports Expansion Slots: 1 x PCI Express x16, 2 x PCI Express x1 Integrated Graphics: Supports Intel GMA X4500 (dependent on CPU). USB Ports: 2 x USB 2.0, 6 x USB 2.0 Audio: Realtek ALC662 6-channel audio Networking: 10/100 Mbps LAN Internal I/O: 1 x 24-pin ATX power connector, 1 x 4-pin CPU power connector Onboard Ports: 1 x VGA, 1 x LAN, 1 x Audio jack BIOS: AMI BIOS Operating System Support: Windows XP/7/8/10 Warranty: 1-year limited warranty

Key Features

• Intel G41 Chipset: Supports Core 2 Duo and Quad CPUs.
• Micro ATX Form: Compact layout for space-saving builds.
• Dual DDR2 Slots: Supports up to 8GB at 1000/1066 MHz.
• 4x SATA II Ports: Stable 3Gb/s speeds for storage drives.
• PCIe x16 Slot: Dedicated lane for a discrete graphics card.
• Intel GMA Graphics: Integrated video for everyday basic tasks.
• 8x USB 2.0 Ports: Plenty of connections for external peripherals.
• 6-Channel Audio: Integrated Realtek chip for multimedia sound.
• Fast Ethernet: Onboard 10/100 Mbps LAN for stable internet.
• Essential I/O: Integrated VGA, network, and audio jacks.

Specifications

Socket: LGA 775, supports Intel Core 2 Duo/Quad, Pentium, Celeron Memory: 2 x DDR2 DIMM slots, up to 8GB, 800/1066 MHz Storage: 4 x SATA II 3Gb/s Expansion Slots: 1 x PCIe x16, 2 x PCIe x1 Audio: Realtek ALC662 6-channel USB Ports: 8 x USB 2.0 (2 front, 6 rear) LAN: 10/100 Mbps Ethernet VGA Output: 1 x VGA port Power Connectors: 24-pin ATX, 4-pin CPU BIOS: AMI BIOS OS Support: Windows XP/7/8/10 Form Factor: Micro ATX Warranty: 1-year limited warranty
